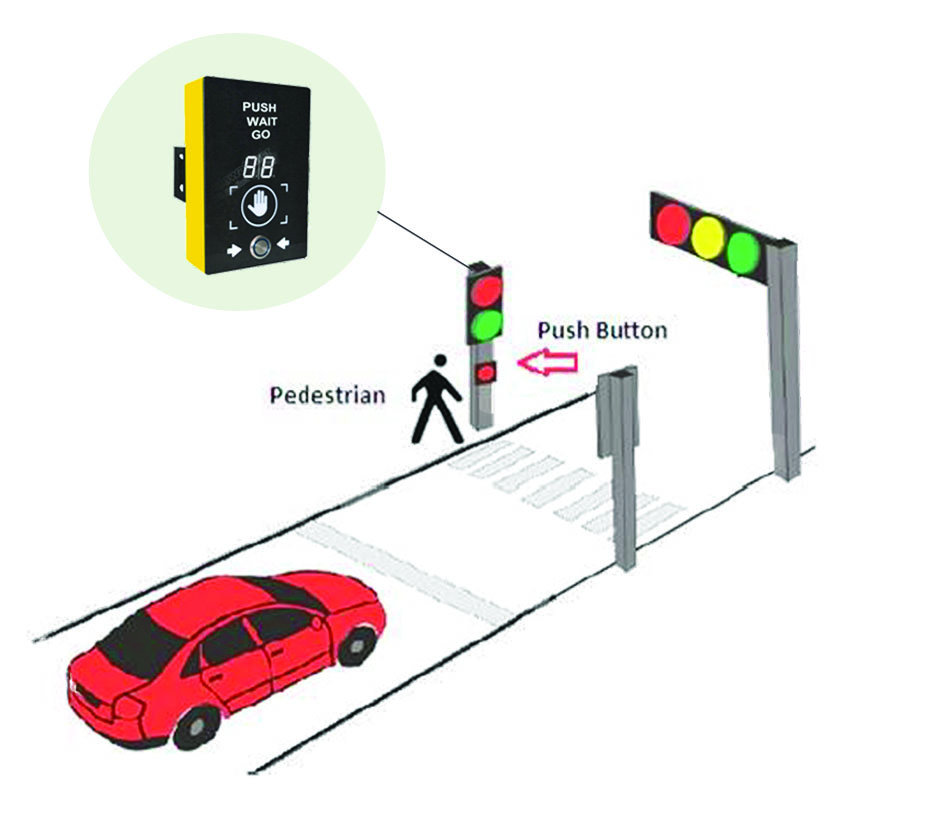

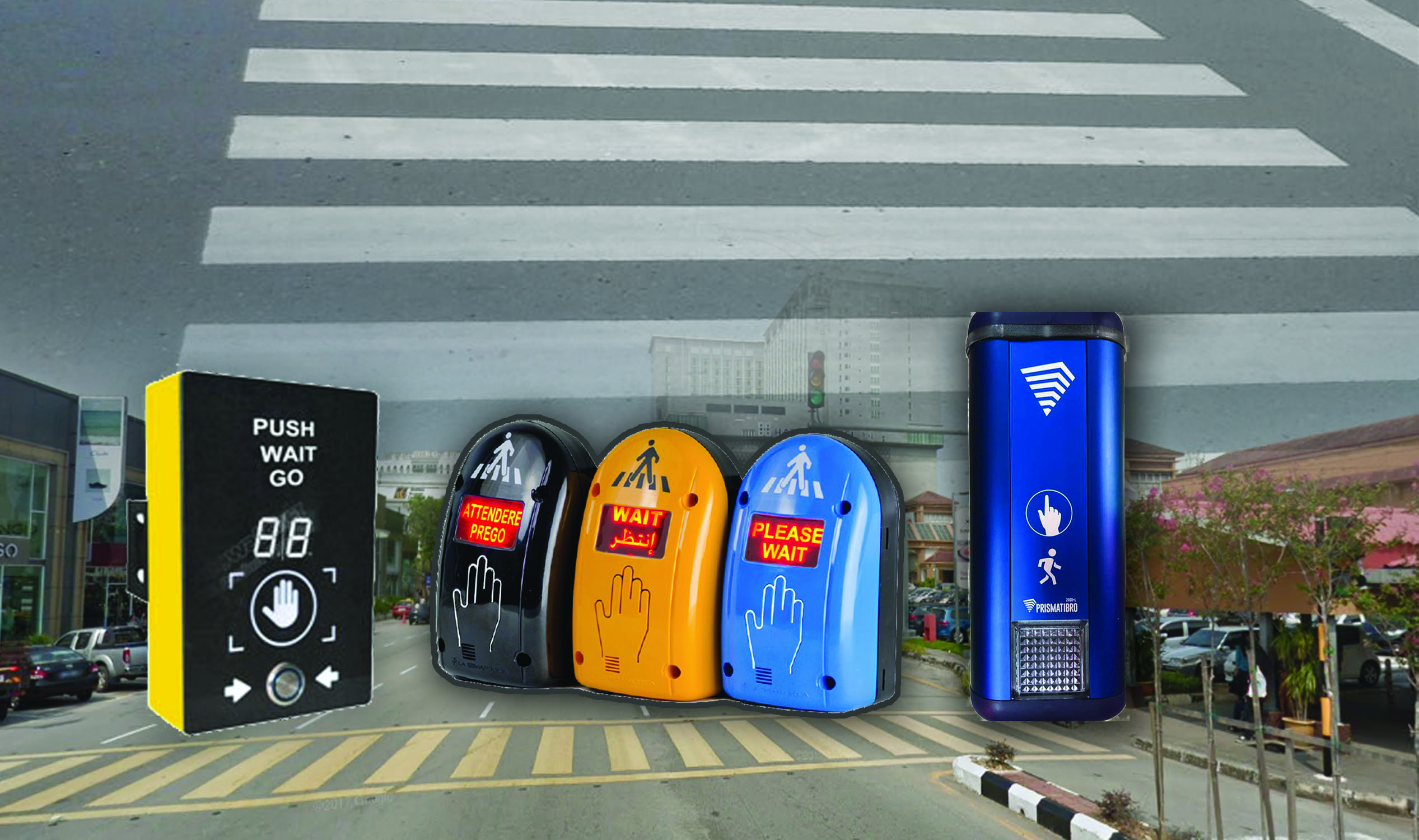

SMART PEDESTRIAN PUSH BUTTONS

Multiple Functions of Crossing Request Button, Countdown Timer, Visual and Acoustic Signal

Pedestrian crossing Capacitive Push Button is an advanced product similar to a mechanical switch, only need to place the hand closer to the device and the button will be activated. With intuitive designs, customers can choose one that suits their application.

Features

  • Compact and vandal proof design
  • Tactile arrow placed below its easy to provide guidance of crossing direction (for vision impaired user)
  • Reservation confirmation through :
    -Luminious alert on large LED backlit display
    -Continuous beep with max duration of 5 secs frequency of 2 kHz

Technical Specifications

Housing material Polycarbonate UV Stabilized
Colour Available in different color: yellow, black
Degree of protection IP55
Led lighting for confirmation message 9 Red LED 45 mcd at 5 mA angle 40
Power supply 12 Vdc
Average consumption 35 mA/ 0.5 W
Acoustic device (adjustable sound level) From 45 dBA to 75 dBA -daytime Up to 35 dBA at night
